SUMMARY
Honda's High Pressure Fire Fighting Pumps are a reliable and trusted brand of fire fighting equipment. Designed to pump water higher and further to fight fires from a safe distance.
GENERAL FEATURES

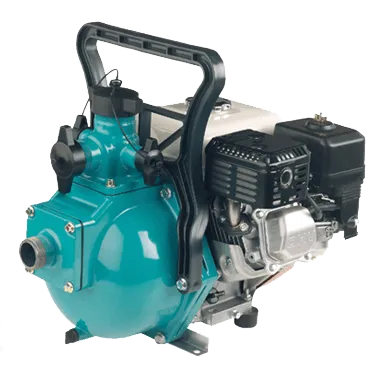

The B55 1.5" is strong and durable manufactured with lightweight high grade corrosion resistant materials. With a large pump casing with raised suction port and inbuilt non-return valve for better priming capabilities. It features Computational Fluid Dynamics for superior performance and efficiency – it's a high pressure pump that can be relied on.
The super high head capability makes it a versatile pump for moving water around the farm, forestry block, lifestyle block or horticultural property.
APPLICATIONS
The BM55H 1.5" is a pump for fire fighting, tank filling, water transfer, irrigation and spraying.
OPERATING CONDITIONS
Suitable for pumping clean non-aggressive liquids without solids or fibres in suspension.
| Fluid | Water |
|---|---|
| Maximum water temperature | 55°C |
| Minimum water temperature | 1°C |
| Maximum ambient temperature | 40°C |
| Maximum casing pressure | 1300kPa |
| Product Code | B55H |
| Engine | GX160 |
| Nominal (hp) | 5.5 max gross |
| Max Pumping/min (lt) | 680 |
| Displacement (cc) | 163 |
| Oil Alert | Yes |
| Diameter | 1.5” |
| Total Head (metre) | 63 |
| Suction Head (metre) | 8 |
| Continuous Duty | 3000rpm |
| Fuel Tank Capacity | 3.1 litres |
| Fuel | Unleaded |
| Fuel Consumption @ 3600 rpm | 1.4 litres/hour |
| Recommended Oil Type | 10W/30 API SG |
| Oil Capacity | 0.6 litres |
| Weight approx. | 23.2 kg |
| Inlet | 1½’’ BSP (male) |
| Outlets | 2 x 1”, 1 x 1½” BSP (male) |
| Dimensions (L x W x H ) (mm) | 530 x 440 x 550mm |
