WIRELESS CONTROL FOR YOUR Van's ELECTRICAL ACCESSORIES
Key features:
- Versatile Control: The Garmin Power Switch 6 is a Bluetooth-enabled switch that commands up to 6 outputs, operable via smartphone or manually within a 30-foot range.
- Rugged Build: Designed for off-roading with an IPX7 weather resistance rating, making it durable in challenging weather conditions.
- High Capacity: Each of the 6 switch outputs supports up to 30 amps, with a total maximum of 100 amps.

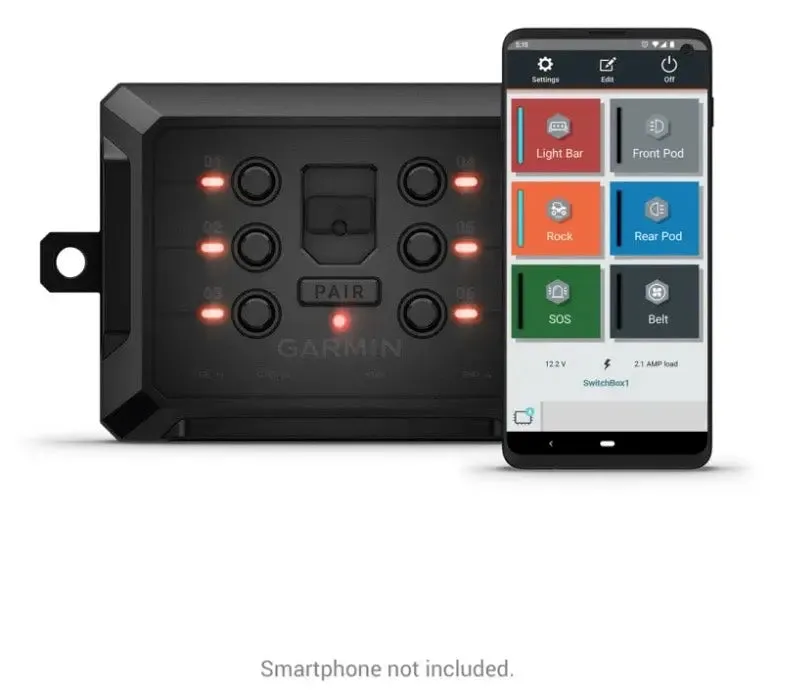

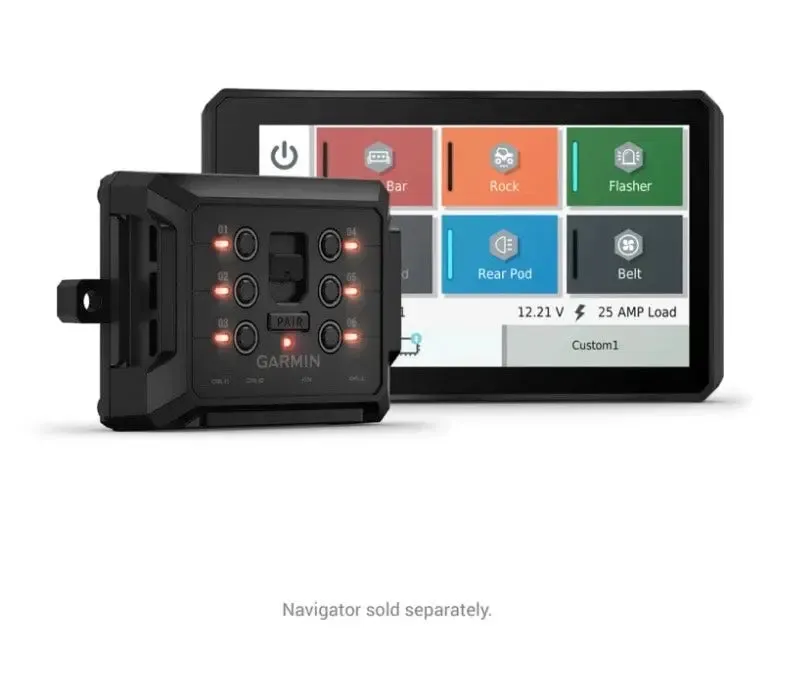

- Customizable and Expandable: Personalize switch panels with custom labels, icons, and channel groups, and access up to 4 Garmin PowerSwitch devices from the same display.
- Wide Applications: Suitable for 4WDs, caravans, and other vehicles to control various 12-volt applications like light bars, horns, air compressors, water pumps, lights, and more.

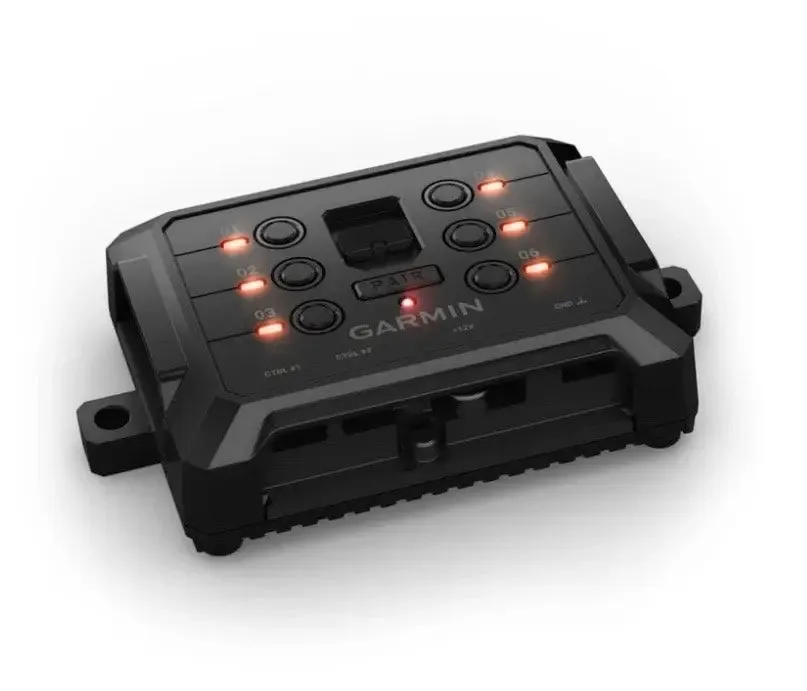

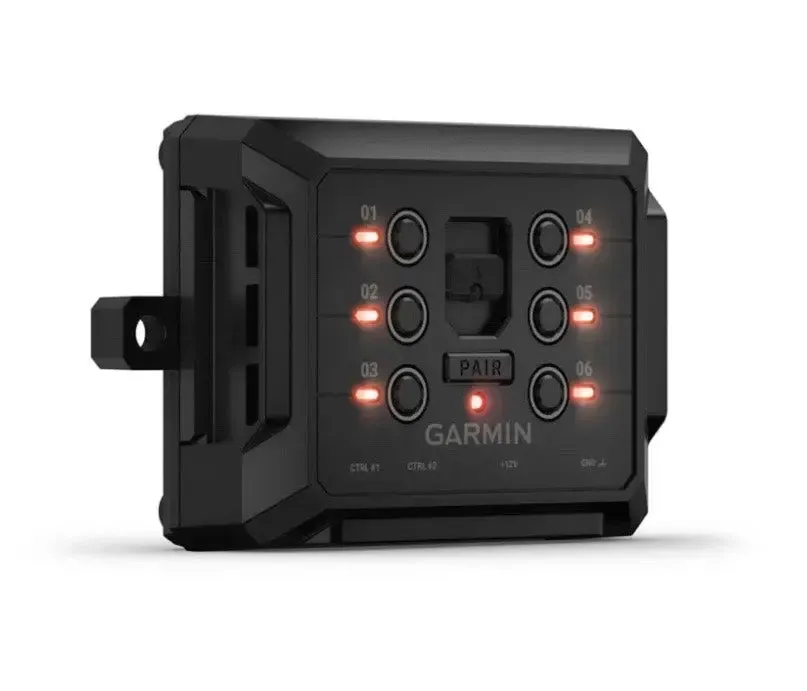

Garmin Power Switch 6 is a waterproof, Bluetooth-enabled switch that commands up to 6 outputs. With a range of 30 feet, it can be operated via smartphone or manually. Boasting an enduring build, it can endure even in the most trying weather. 4WDs can use it to control light bars, horns, air compressors, locks, and more using a compatible sat-nav or smartphone. Caravans can utilise it to manage water pumps, lights, fans, radios, televisions, and other 12-volt applications with easy assembly.
This rugged switch box is crafted for off-roading and boasts an IPX7 weather resistance rating. Via your device's touchscreen, you can wirelessly access up to 6 switch outputs at 30 amps each. Personalise switch panels with custom labels, icons, channel groups, and more, and access up to 4 Garmin PowerSwitch devices from the same display.
General | |
| DIMENSION | 5″ W x 1″ H x 3″ D (12.5 x 3 x 7.5 cm) |
|---|---|
| WEIGHT | 10 oz (283 g) |
| WATERPROOF | IPX7 |
Digital Switching Features | |
| NUMBER OF SWITCH OUTPUTS | 6 |
|---|---|
| MAX AMPS PER SWITCH OUTPUT | 30 amps |
| MAX AMPS TOTAL | 100 amps |
| NUMBER OF HARDWIRE INPUTS | 2 |
| MAX NUMBER OF CONTROLLERS* FOR PAIRING WITH A POWERSWITCH DEVICE *CONTROLLER IS DEFINED BY A USER’S SMARTPHONE, MOBILE DEVICE OR COMPATIBLE GARMIN NAVIGATOR (SOLD SEPARATELY) | 4 |
| MAX NUMBER OF POWERSWITCH DEVICES FOR PAIRING WITH A CONTROLLER* *CONTROLLER IS DEFINED BY A USER’S SMARTPHONE, MOBILE DEVICE OR COMPATIBLE GARMIN NAVIGATOR (SOLD SEPARATELY) | 4 |
In the Box:
- Garmin PowerSwitch™
- Power cable
- Ground cable
- Terminals
- Documentation
